Sheets and plates

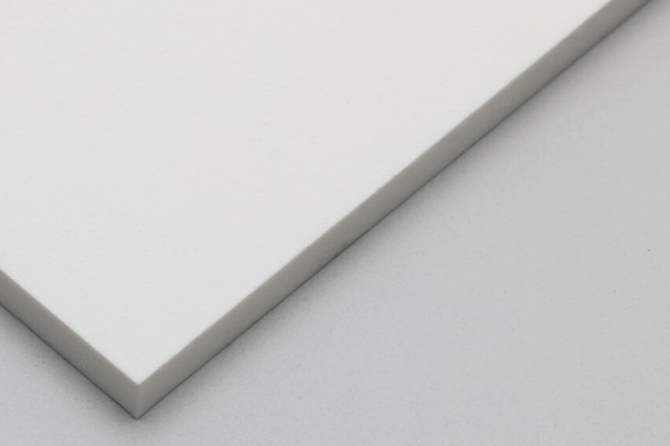

Acrylic modified high impact PVC plate TAFBILON®/KYDEX®
High-spec acrylic modified high impact PVC plate simultaneously having various functional properties and thermoforming property
Compatible with vacuum and pressure forming as well as deep drawing. It also features excellent flame resistance, impact resistance, and chemical resistance and is used in a variety of fields such as automotive, medical
devices, housings, interior materials, and industrial materials. Products with different grades and function assignment are also available.
TAFBILON Features
Deep formability
High tensile strength during thermoforming and large elongation, good mold repeatability, ideal for vacuum/pressure forming material. Deep drawing can be easily done in the temperature range of 170 to 190°C.
Flame resistance
Does not burn easily and has a self-extinguishing property. We have obtained 94-V0 certification under the UL standard (TA/TB/TC).
Processability
Offers excellent impact resistance and trimming can be done easily by NC machining and press punching.
Impact resistance
Has high impact strength comparable to polycarbonate and FRP.
Chemical resistance
Has good chemical resistance, no discoloration, no deterioration, and excellent corrosion resistance. (Excluding some solvents)
Lightweight
It is light, with 1/6 the specific gravity of iron, and is easy to carry and handle. Can reduce the weight of automotive interior materials.
Eco friendly
・ Complies with the RoHS Directive / 10 substance restriction
・ Complies with REACH regulations for industrial and commercial use
(the TA-5000 series is also compliant for general public use)
TAFBILON Products

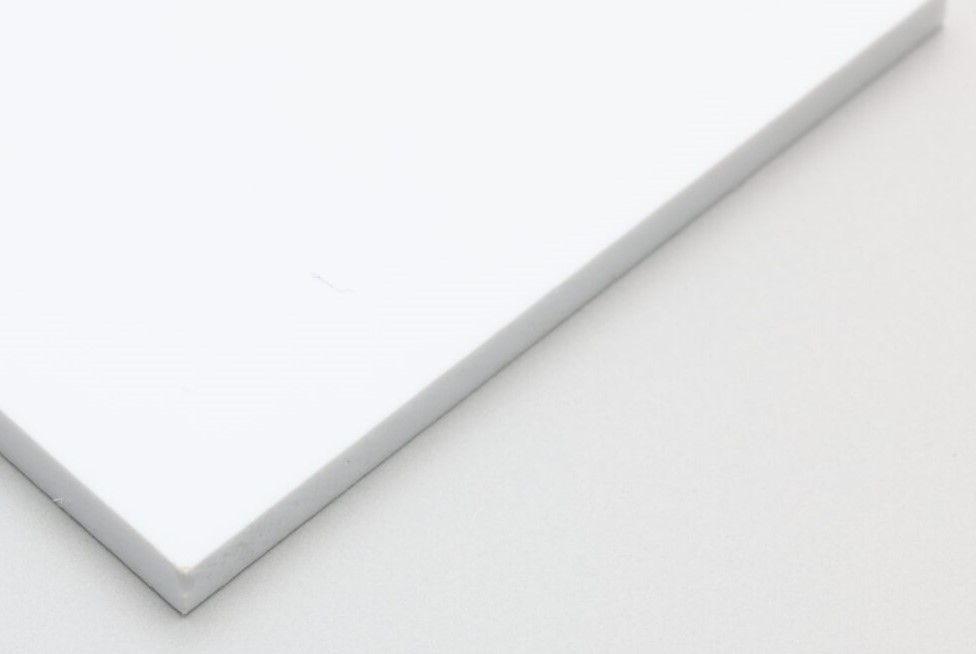

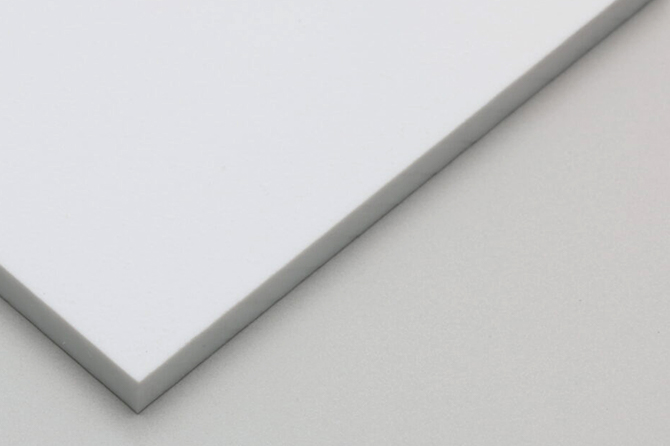

TA-3110-M (White)

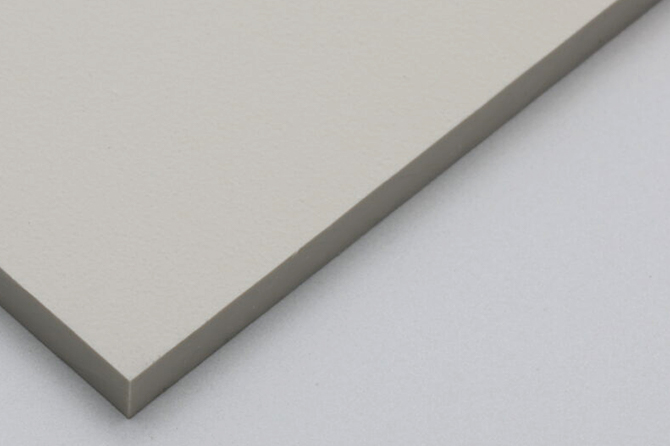

TA-3150-M (Ivory)
TA-3613-M (Mocha grey)

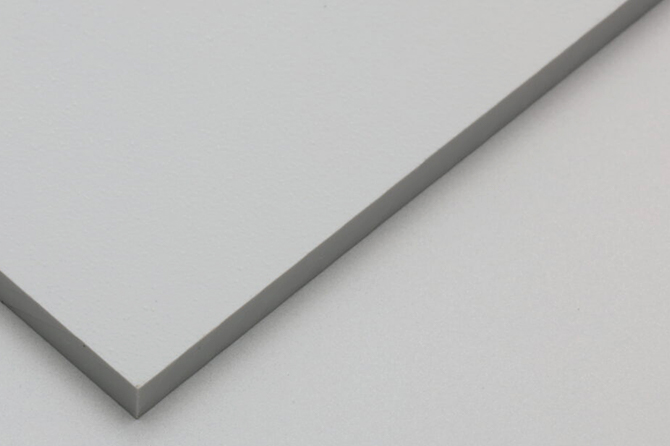

TA-3602-M (Light grey)

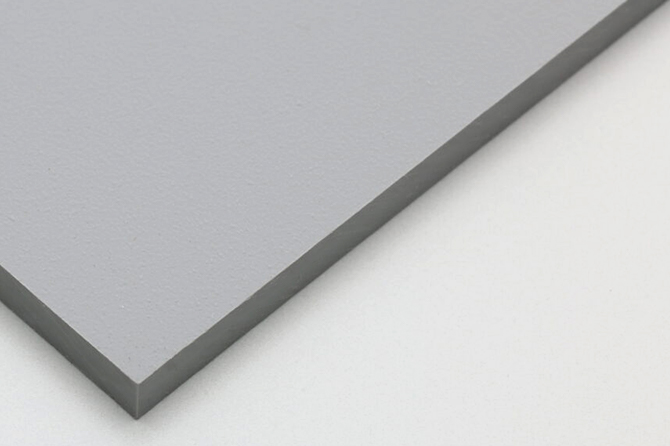

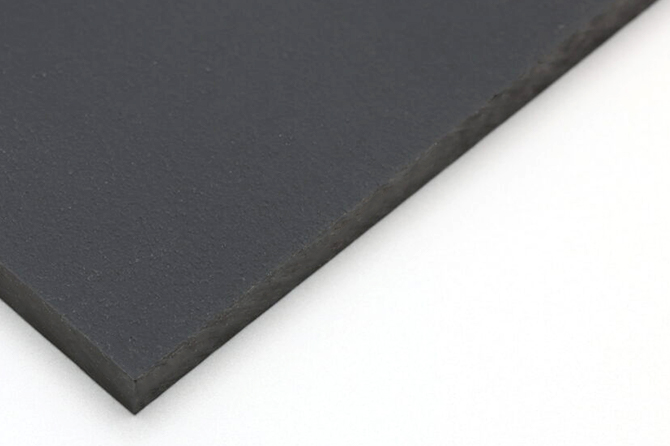

TA-3603-M (Grey)
TA-3700-M (Black)
Surface design you can choose

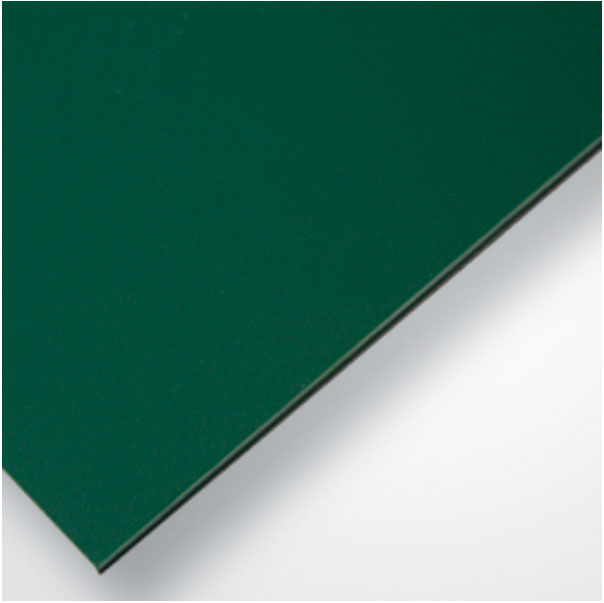

Textured Plain (mirror surface)
Textured - Fine texture (standard product) M

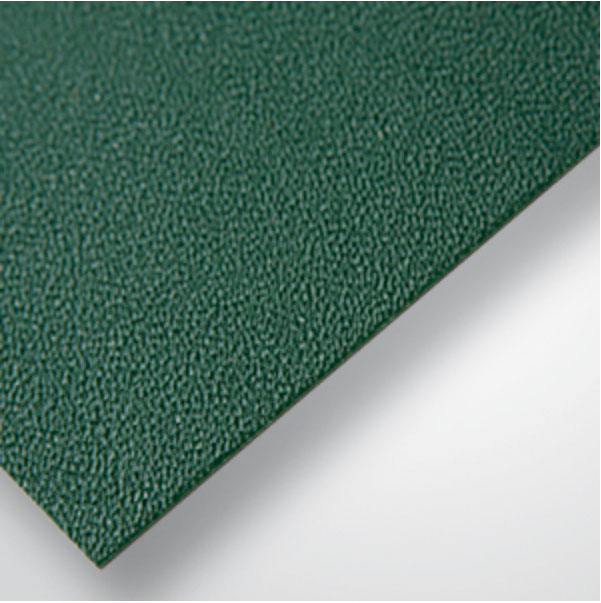

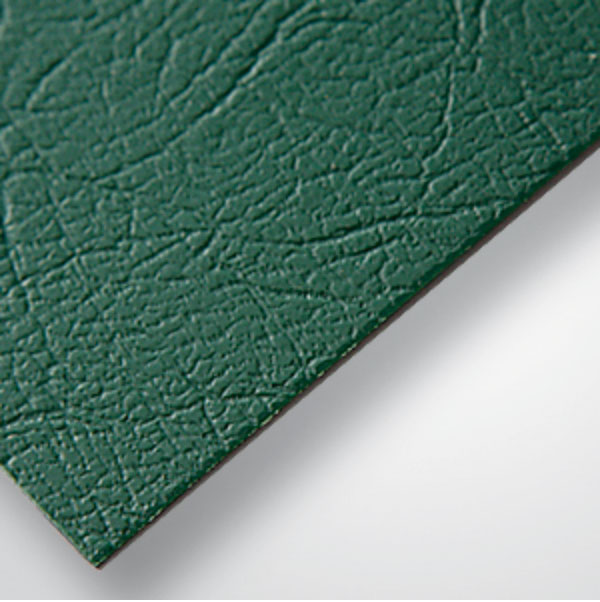

Textured - Coarse texture F
Decoration (depiction)
Decoration (depiction)
Decoration (depiction)
Decoration (depiction)

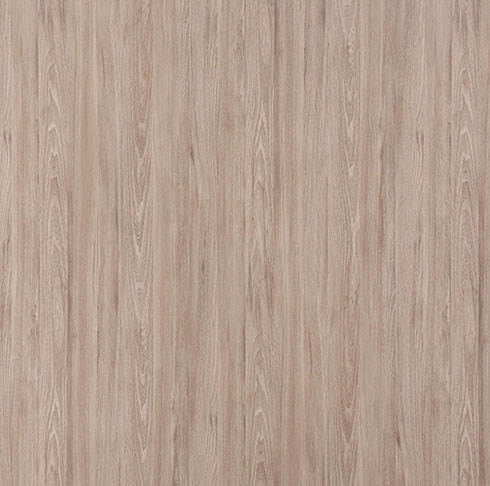

*The texture can be given a pattern such as wood or stone upon request.
Added functionality to basic performance (high added value) We take custom made orders
Increase weather resistance
Compatible with long-term outdoor use.
Stain resistance
Easy to remove permanent marker or shoe polish spots.
Antiviral
Add antiviral processing while retaining formability.
Antibacterial
SIAA mark certified product level specified by the Society of International sustaining growth for Antimicrobial Articles.
REACH compliant
All the substances registered in REACH regulations are either absent or below threshold levels. (TA-5000 series) *Inquire for details.
TAFBILON Use examples

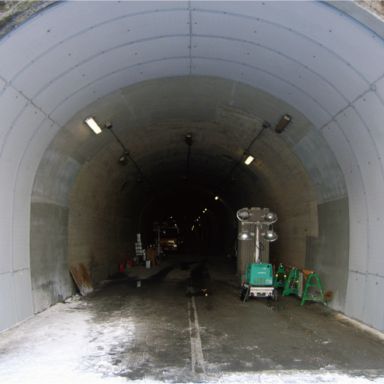

Arch or drain water guide plates

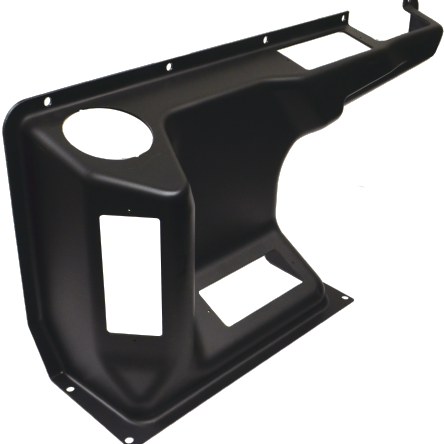

Construction machinery interior materials

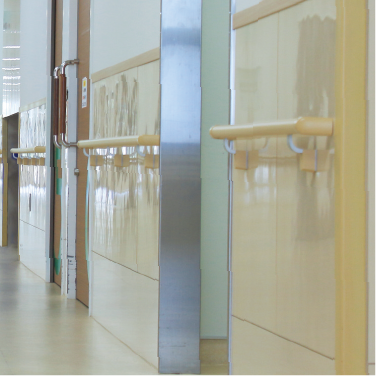

Waist-high partition wall protective sheets
Dentist chair

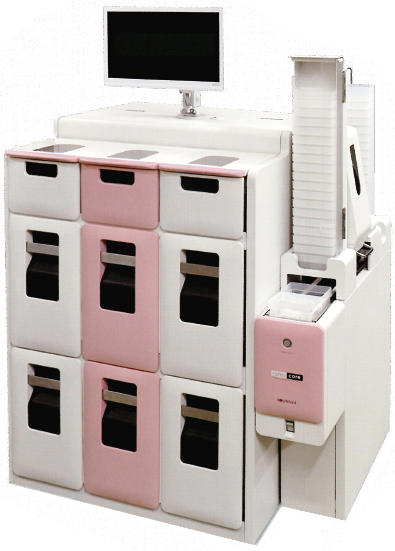

Blood collection tube case

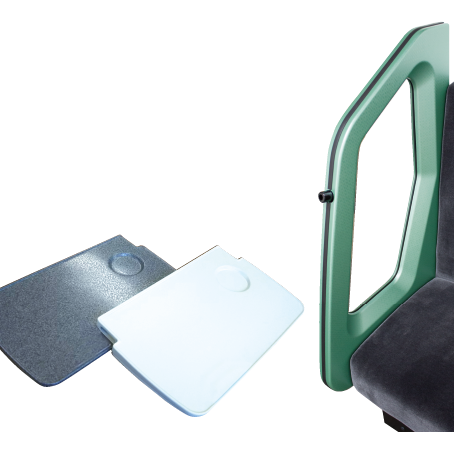

Railway interior materials
TAFBILON List of product specifications
TAFBILON Standard product
| Grade | Part no. | Color | Surface | Size (mm) | Thickness (mm) | Specific gravity | |||
|---|---|---|---|---|---|---|---|---|---|
| W x L | 2.0 | 3.0 | 4.0 | 5.0 | |||||
|
TA
|
TA-3110-M | White | M textured | 1000X2000 | (5) | (3) | (2) | (2) | 1.35 |
| TA-3150-M | Ivory | (5) | (3) | (2) | (2) | 1.35 | |||
| TA-3613-M | Mocha grey | – | (3) | – | (2) | 1.35 | |||
| TA-3602-M | Light grey | – | (3) | (2) | (2) | 1.35 | |||
| TA-3603-M | Grey | (5) | (3) | (2) | (2) | 1.35 | |||
| TA-3700-M | Black | (5) | (3) | – | (2) | 1.35 | |||
| TA-3150-F | Ivory | F textured | 1000X2000 | – | (3) | – | (2) | 1.35 | |
| TA-3603-F | Grey | – | (3) | – | (2) | 1.35 | |||
| TA-3700-F | Black | – | (3) | – | (2) | 1.35 | |||
・ The TA-3000 series contains no SVHC, based on REACH regulations.
・ The number in the circle shows the number of pieces per package.
TAFBILON order-made products
| Grade | Thickness (mm) | Width (mm) | Length (mm) | |
|
TA
|
General grade*1 | 1.0 – 6.0 | 550 – 1000 | 550*2 – 4000 |
| REACH compliant | 1.0 – 6.0 | 550 – 1000 | 550*2 – 4000 | |
| TB | General-purpose grade | 1.0 – 6.0 | 550 – 1000 | 550*2 – 4000 |
| TW | Weatherproof grade | 2.0 – 6.0 | 550 – 1000 | 550 – 4000 |

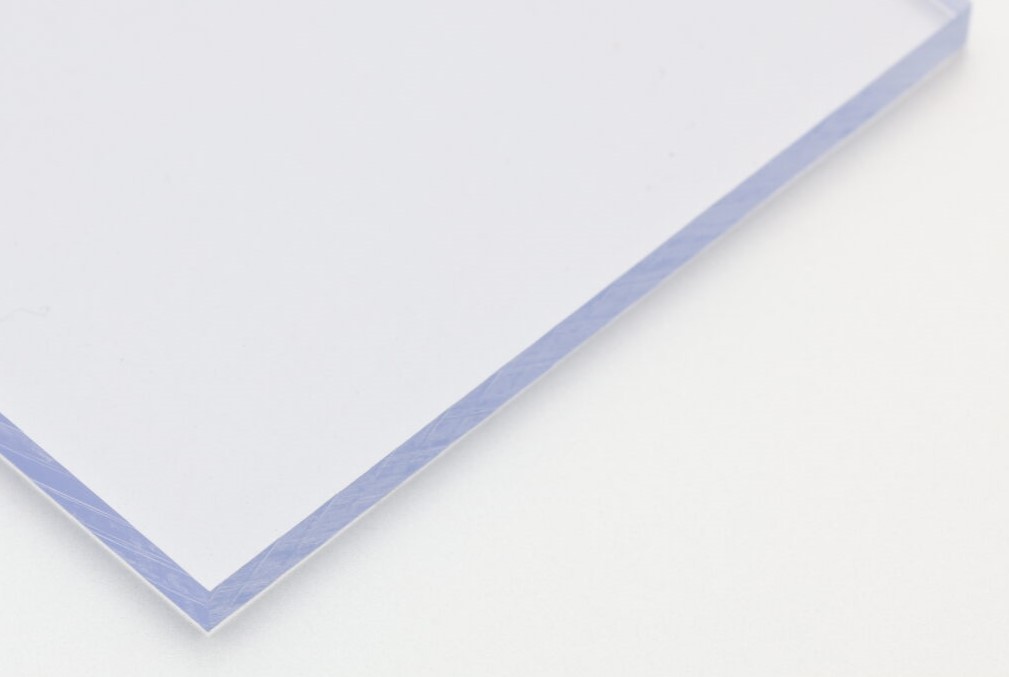

| TC | Transparent grade | 2.0 – 6.0 | 550 – 1000 | 550 – 4000 |
*1: The TA of order-made products indicates non-standard special sizes, colors, textures, etc.
*2: For length of 550 mm, product thickness starts at 2 mm.
・ Order lots must be at least 1,000 kg for a single color or size.
KYDEX Features
Deep drawability
Molding can be done at a six times molding ratio, and deep drawing can be easily done in the temperature range of 177 to 190°C.
Flame resistance
Various grades are available for railway and automotive interior materials and aviation flame resistance, for example.
Impact resistance and chemical resistance
Maintains a high impact strength comparable to polycarbonate and FRP in Izod impact value. There is also no discoloration or loss of physical properties due to chemical adhesion.
Diverse lineup
We offer a lineup of many types of grades.
KYDEX List of product specifications
All KYDEX products are made to order. For your specific requests about details such as size, color, and texture, please contact us.
