Industrial PVC plate ESLON®: ESLON PLATE/relating parts (DUCT PIPE, ANGLE, WELDING ROD, ADHESIVE)
Industrial corrosion resistance hard PVC materials specifically for industrial use
Compared with general-purpose PVC, it excels in characteristics such as corrosion resistance, chemical resistance, and heat resistance. In articular, it is superior in mechanical strength to conventional industrial corrosion-resistant materials such as rubber and stainless steel, and it is widely used in various industrial fields such as civil engineering, construction, and industrial materials. Relating parts are also readily available which can be flexibly adapted to complex designs.
FEATURES
High corrosion resistance and chemical resistance
Excellent processability
High flame resistant
In addition to the self-extinguishing properties, it has the flame resistance of UL-94V-0.
JIS certification
ESLON PLATEs manufactured in our company have been certified by the Japanese Industrial Standard (JIS) (with 3.0 to 12.0 mm thickness).
Product

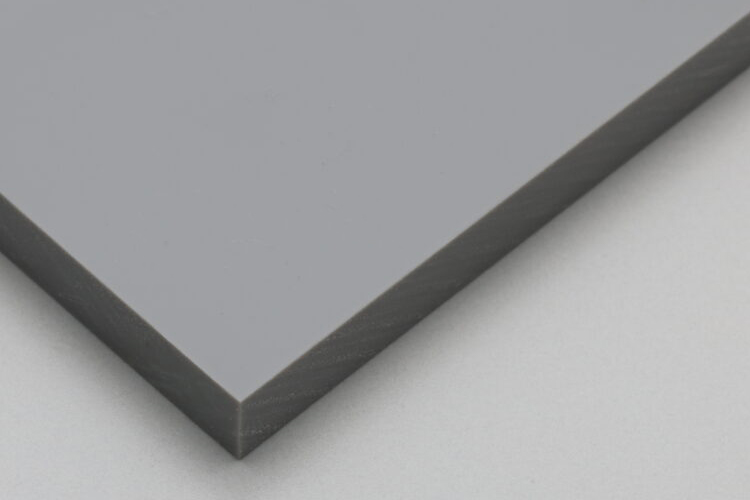

S-101-E (grey)

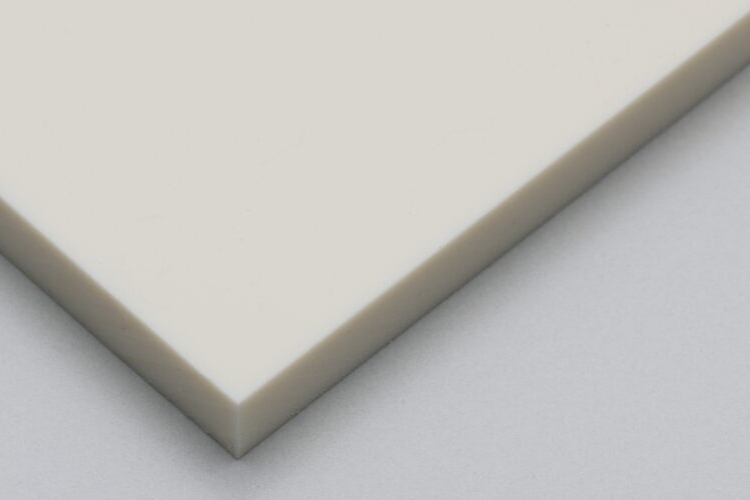

S-241-E (ivory)

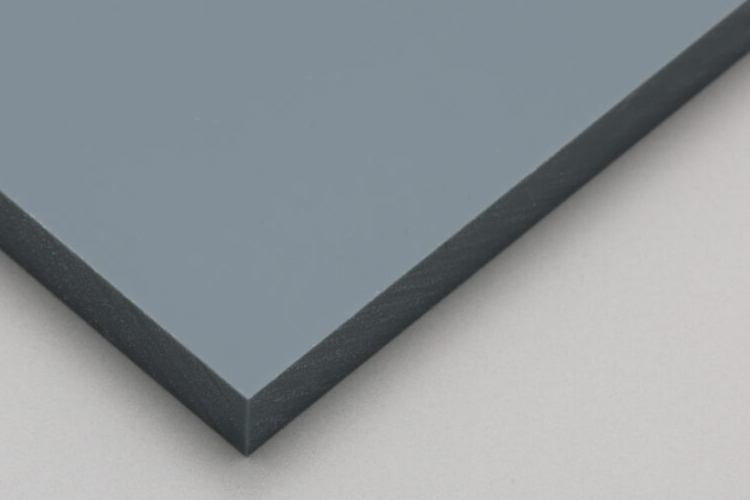

S-121-SHT(dark grey)

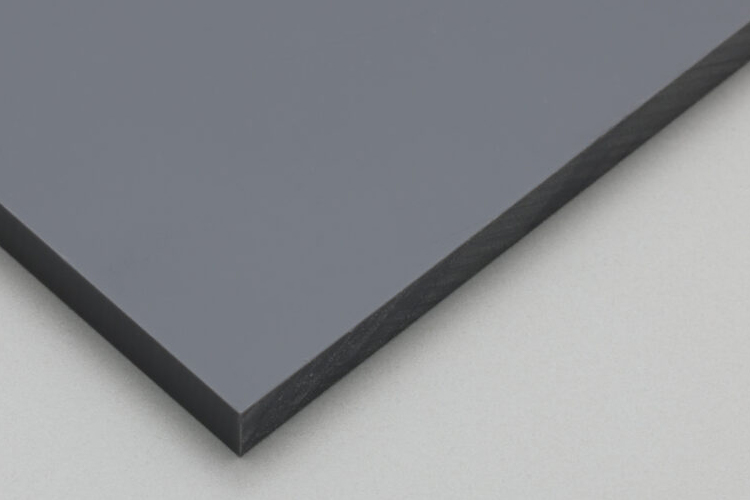

S-122-HI (grey)
NC-100 (dark grey)
APPLICATION

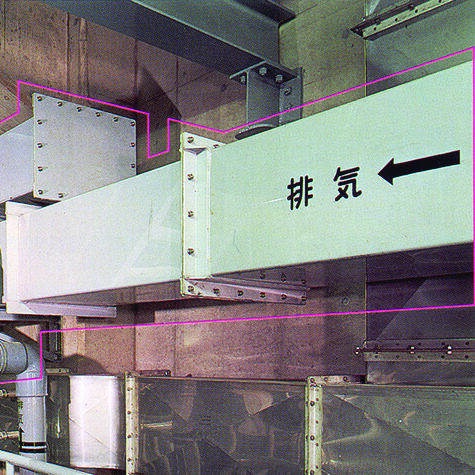

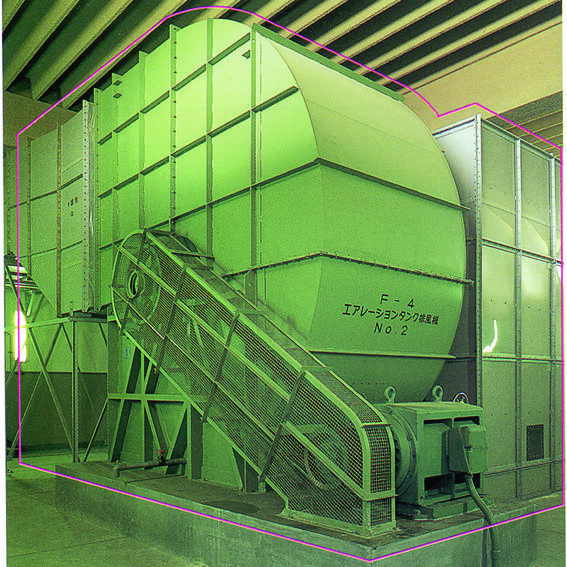

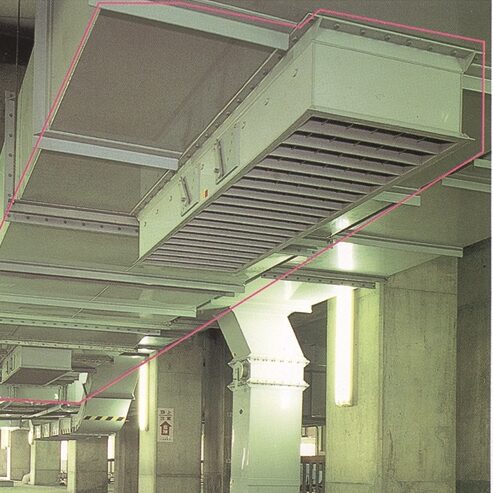

Intake and exhaust ducts
Waste liquid treatment tanks
Duct parts
Barrels
SPECIFICATIONS

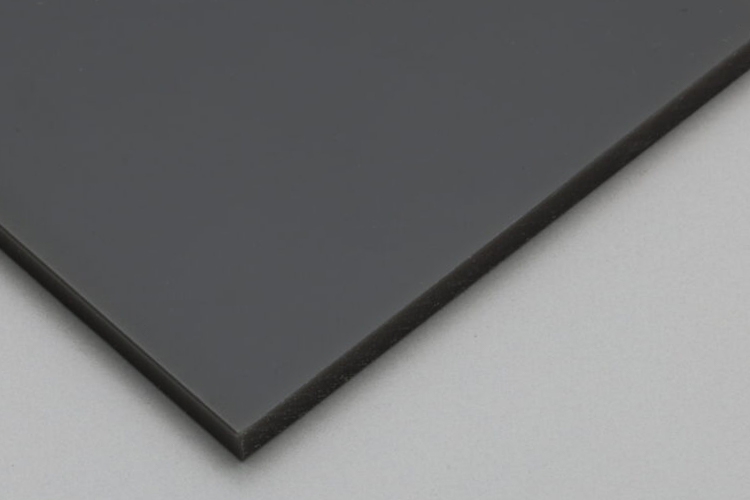

ESLON PLATE (industrial hard PVC extruded board)
|
Item numbe
|
Color
|
Size (mm) | Thickness (mm) |
Specific gravity
|
N.B.
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W × L |
1.0 |
2.0 |
3.0 |
4.0 |
5.0 |
6.0 |
8.0 |
10.0 |
12.0 |
15.0 |
18.0 |
20.0 |
||||
|
S-101-E
|
Grey | 1000×2000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | * | ○ | * | ○ | 1.47 | General industrial | |
| 1212×2424 | ○ | ○ | ○ | ○ | ○ | ○ | 1.47 | General industrial | ||||||||
|
S-241-E
|
Ivory | 1000×2000 | ○ | ○ | ○ | ○ | ○ | ○ | * | * | 1.47 | General industrial | ||||
| 1212×2424 | * | * | ○ | * | ○ | ○ | 1.47 | General industrial | ||||||||
|
S-121-SHT
|
Dark grey | 1000×2000 | ○ | * | ○ | * | ○ | ○ | * | * | 1.5 | Heat resistance | ||||
| 1212×2424 | * | * | * | 1.5 | Heat resistance | |||||||||||
|
S-122-HI
|
Grey | 1000×2000 | ○ | * | ○ | * | ○ | ○ | 1.364 | High impact | ||||||
| 1212×2424 | * | * | * | * | * | * | 1.364 | High impact | ||||||||
| NC-100 | Dark grey | 1,000×10m roll | ○ | ○ | 1.35 | Semi-hard lining | ||||||||||
○: Our company’s standard product, *: Order-made product.
・In addition to those shown above, custom-order products (for colors and sizes) are available. For details, please contact us.
Relating parts are also readily available which can be flexibly adapted to complex designs.

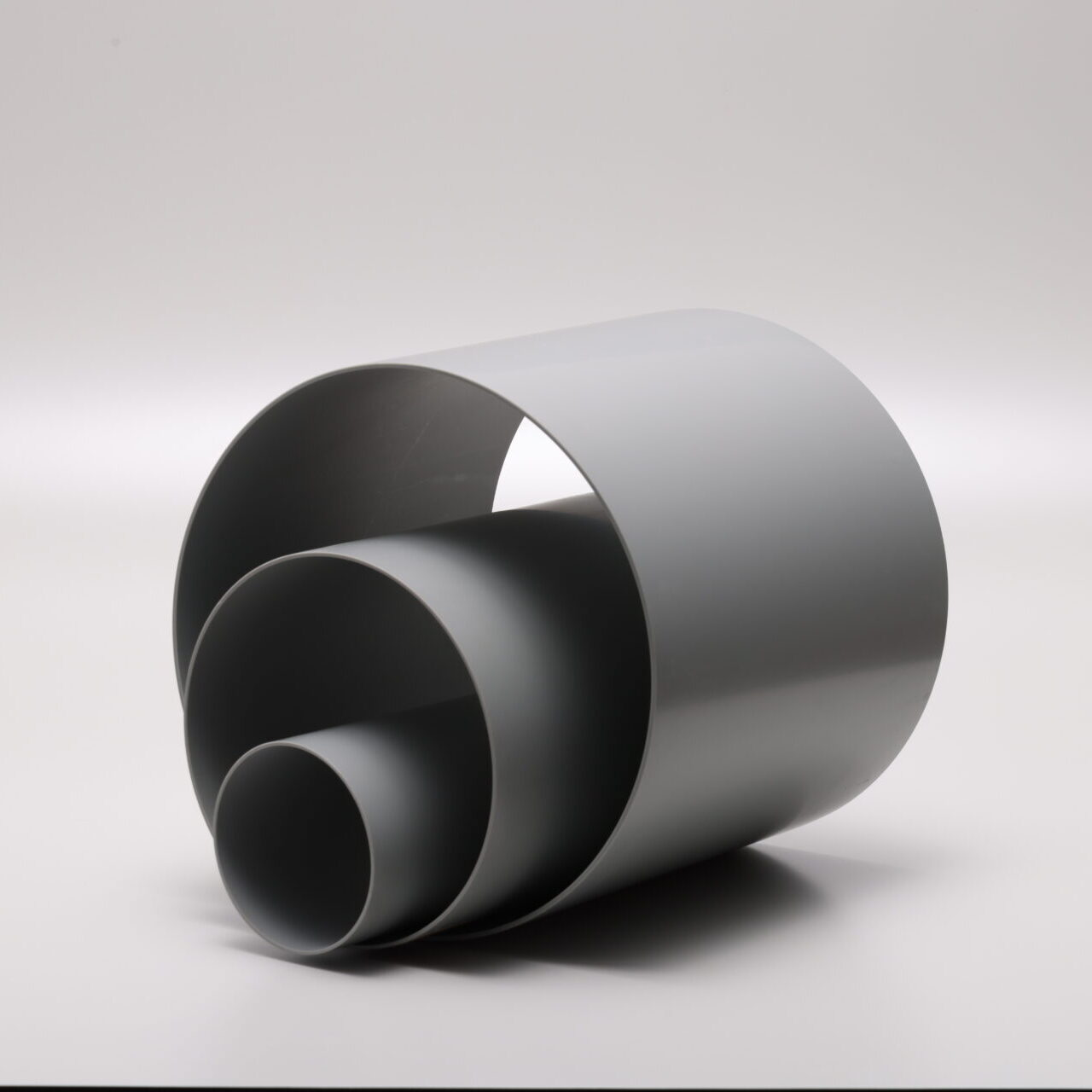

ESLON DUCT PIPE
Conforms to the criteria of the Japan Sewage Works Agency. The two colors of grey and ivory are available as standard specifications.

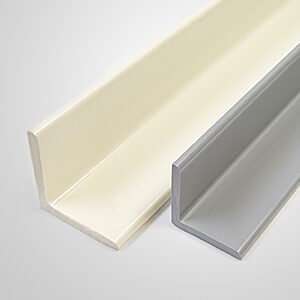

ESLON ANGLE
ESLON general industrial materials. An angle dedicated to being used for ESLON PLATE.

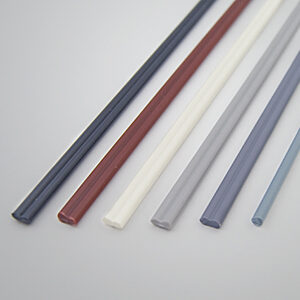

ESLON WELDING ROD
ESLON general industrial materials. A welding rod dedicated to being used for ESLON PLATE.
ESLON ADHESIVE
ESLON general industrial materials. An adhesive dedicated to being used for ESLON PLATE.
SPECIFICATIONS (relating parts)
ESLON DUCT PIPE
|
Item number
|
External diameter (mm)
|
Wall thickness (mm)
|
Length (mm)
|
Reference weight (kg/piece)
|
Color |
|---|---|---|---|---|---|
| E150 | 165±0.8 | 2.5 | 4000 | 7.3 | Grey Ivory |
| E200 | 216±1.8 | 2.5 | 4000 | 9.7 | |
| E250 | 267±2.6 | 3.0 | 4000 | 14.4 | |
| E300 | 318±3.0 | 3.0 | 4000 | 17.2 | |
| E350 | 370±3.0 | 3.5 | 4000 | 23.0 | |
| E400 | 420±3.5 | 4.0 | 4000 | 30.0 | |
| E450 | 470±3.5 | 4.5 | 4000 | 38.2 | |
| E500 | 520±3.5 | 5.0 | 4000 | 46.9 | |
| E600 | 612±3.5 | 6.0 | 2000 | 33.1 |
ESLON ANGLE
|
Item number
|
Size
Width × Wall thickness (mm)
|
Length (mm) |
Packaging unit (Piece)
|
Reference weight (kg/piece)
|
|---|---|---|---|---|
| A-101 | 30×30×4 | 4000 | 20 | 1.29 |
| A-101、A-201 | 40×40×5 | 4000 | 10 | 2.16 |
| A-101、A-201 | 50×50×6 | 4000 | 10 | 3.24 |
| A-101、A-201 | 60×60×7 | 4000 | 5 | 4.55 |
| A-101 | 75×75×9 | 4000 | 5 | 7.30 |
|
Item number
|
Color |
Corresponding plates (item numbers)
|
Uses |
|---|---|---|---|
| A-101 | Grey | S-101-E | General |
| A-201 | Ivory | S-241-E | General |
ESLON WELDING ROD
|
Item number
|
Color |
Size (number=φ、s=single, w=double, tr=triple)
|
Length (mm)
|
Packaging unit (kg)
|
Corresponding plates (item numbers, other)
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2S | 2.5S | 3S | 4S | 3W | 2TR | 2.5TR | 3TR | |||||
| Y-101 | Grey | 1190 | ＊ | 530 | 290 | 270 | 500 | ＊ | 300 | 1000 | 5 | S-101-E |
| Y-241 | Ivory | 1190 | – | 530 | – | 270 | – | – | – | 1000 | 5 | S-241-E |
| Y-122HI | Grey | 1230 | – | 540 | ＊ | 280 | ＊ | ＊ | ＊ | 1000 | 5 | S-122-HI |
| Y-102HIP |
Dark blue
|
1230 | – | 540 | – | ＊ | – | – | – | 1000 | 5 | HI pipes |
| Y-121HTS | Dark grey | 990 | – | 440 | ＊ | 220 | – | ＊ | – | 1000 | 5 | S-121-SHT |
| Y-121-HTP | Brown | – | – | 440 | – | 220 | – | – | – | 1000 | 5 | HT pipes |
| Y-100NCF | Dark grey | – | – | 530 | 290 | 270 | – | – | – | 1000 | 5 | Semi-hard lining |
* : Order-made product. The numbers in the “SIZE” column indicate the quantity of the rods per case, for reference.
ESLON ADHESIVE
|
Item number
|
QUANTITY | Uses |
Corresponding plates (item numbers)
|
|---|---|---|---|
| Adhesive NO.170 | 1kg can | PVC / PVC | ESLON PLATE, HI PLATE, HT PLATE |
| Adhesive NO.360 | 15kg can | Linings | ESLON NC PLATE |
