Sheets and plates

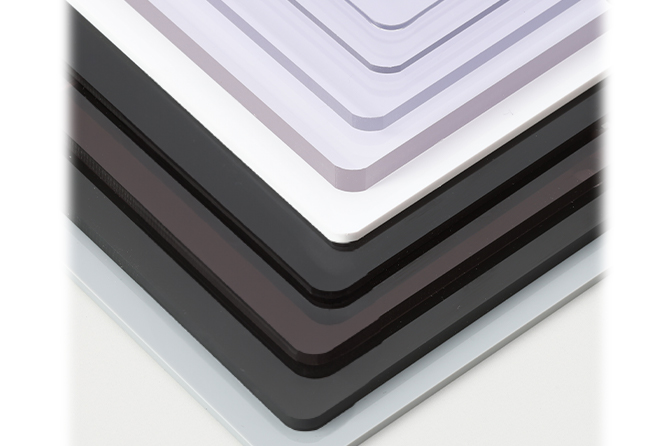

Hard PVC sheet/plate ESBILON®: ESBILON SHEET, ESBILON STAT, ESBILON PLATE
A versatile polyvinyl chloride product that excels in various properties, such as processability and printability, and especially corrosion resistance, chemical resistance, and flame resistance
It can be used in various industrial fields from packages to POP displays, stationery, equipment parts, and machine covers. In addition, function-added antistatic grade ESBILON STAT and UL certified products are also
available.
FEATURES
High transparency
Clear type has excellent transparency with a total light transmittance of 85% or more.
Excellent processability
It excels in various secondary processability such as bending, cutting, printing, and punching.
High flame resistance
In addition to the self-extinguishing property of the PVC resin itself, UL 94 V-0 certified products are also available.
Superior properties
It has excellent chemical resistance, corrosion resistance and oil resistance, as well as excellent durability, especially against acids, alkalis, and salts.
Product (ESBILON SHEET)
FG-100 (transparent)
A-100 (transparent)
B-100 (transparent)
A-310 (white)

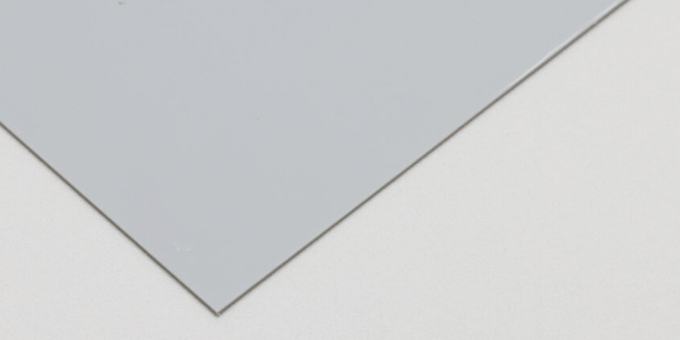

A-360 (gray)

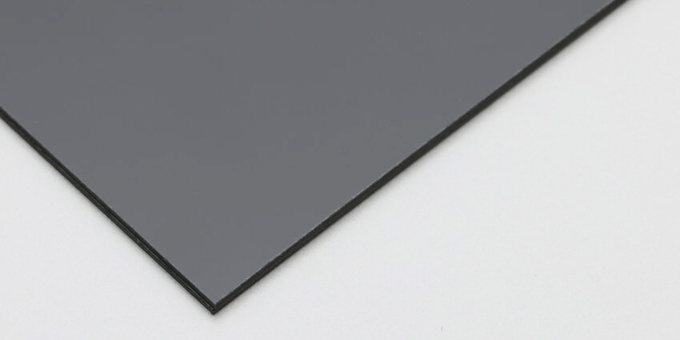

A-370 (black)

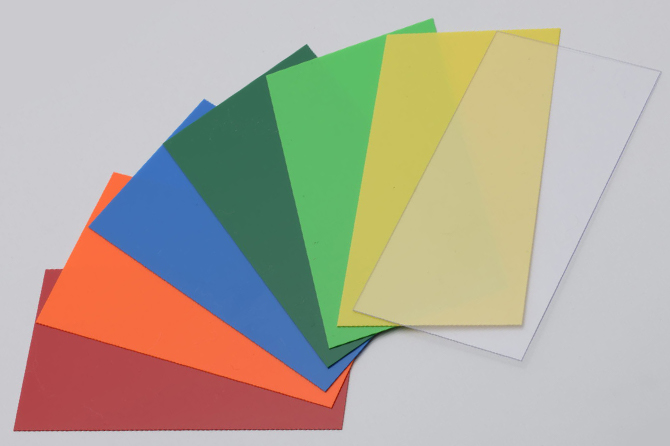

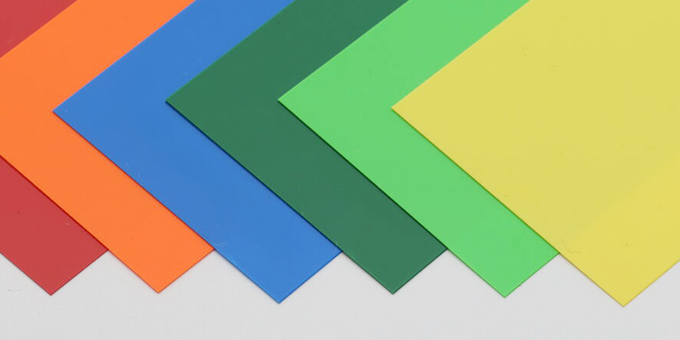

A-Colors (6 colors)

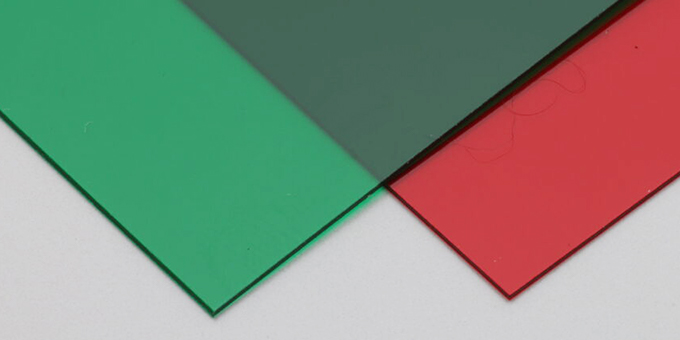

AH-Colors (red/green)

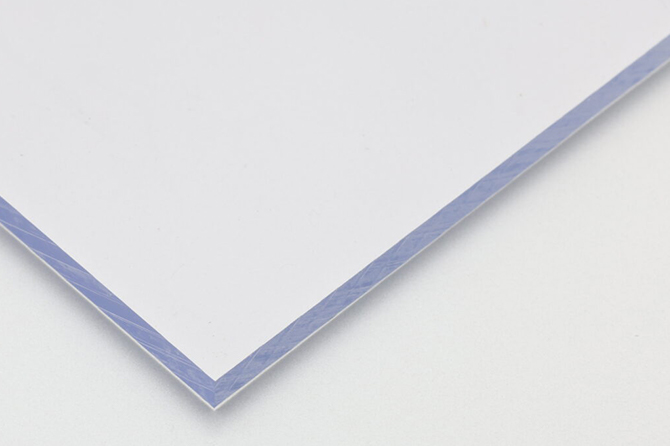

AM-1000-H (transparent)
AM-3100-H (white)
AS-100 (transparent)
Product (ESBILON PLATE)
I-500-TR
I-311-H
I-3701-H

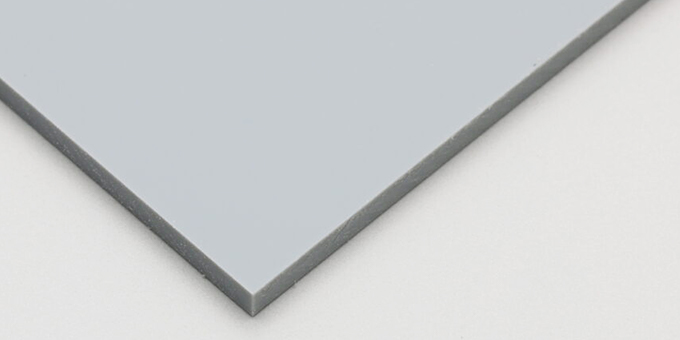

I-3603-H
I-104-H
I-1701-H

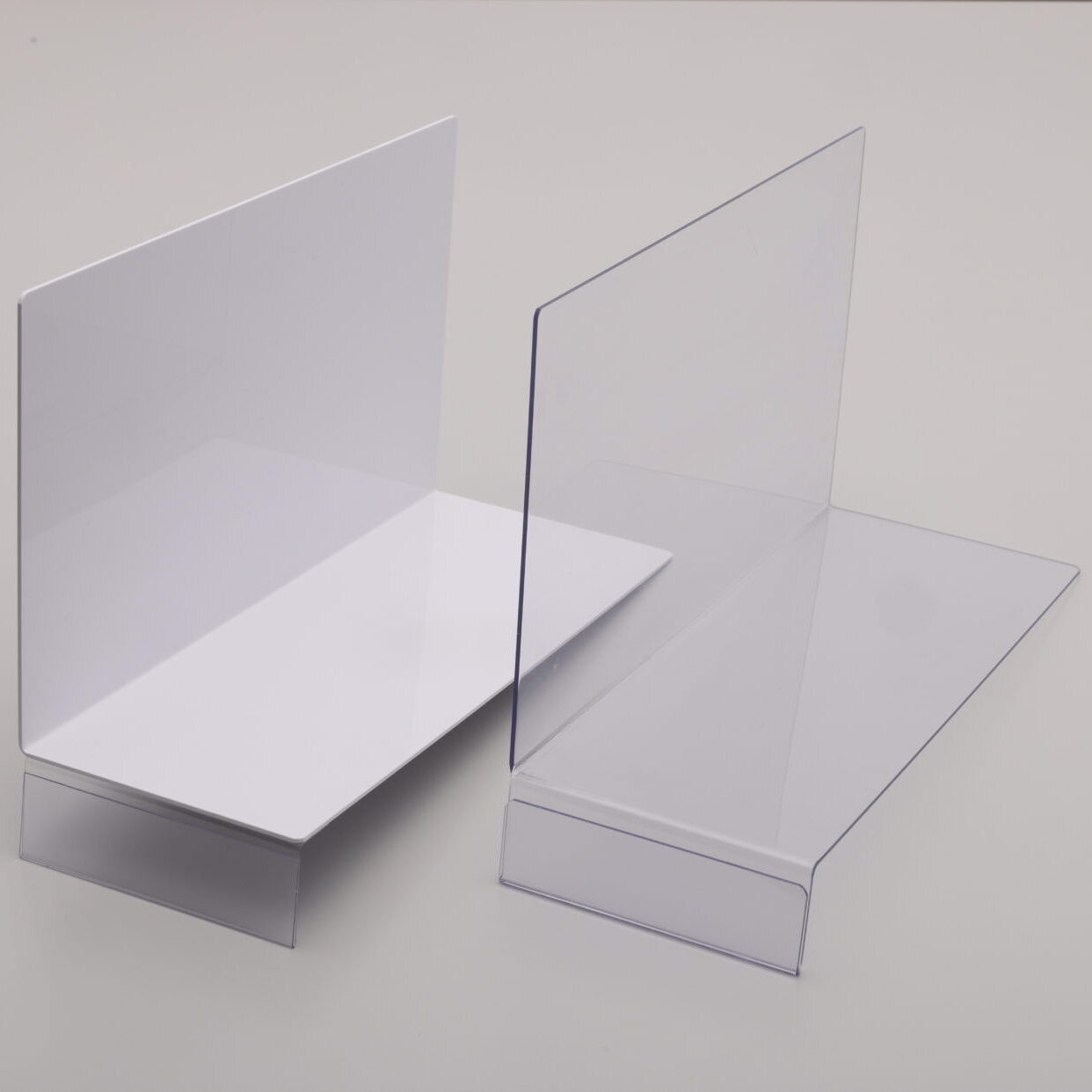

APPLICATION

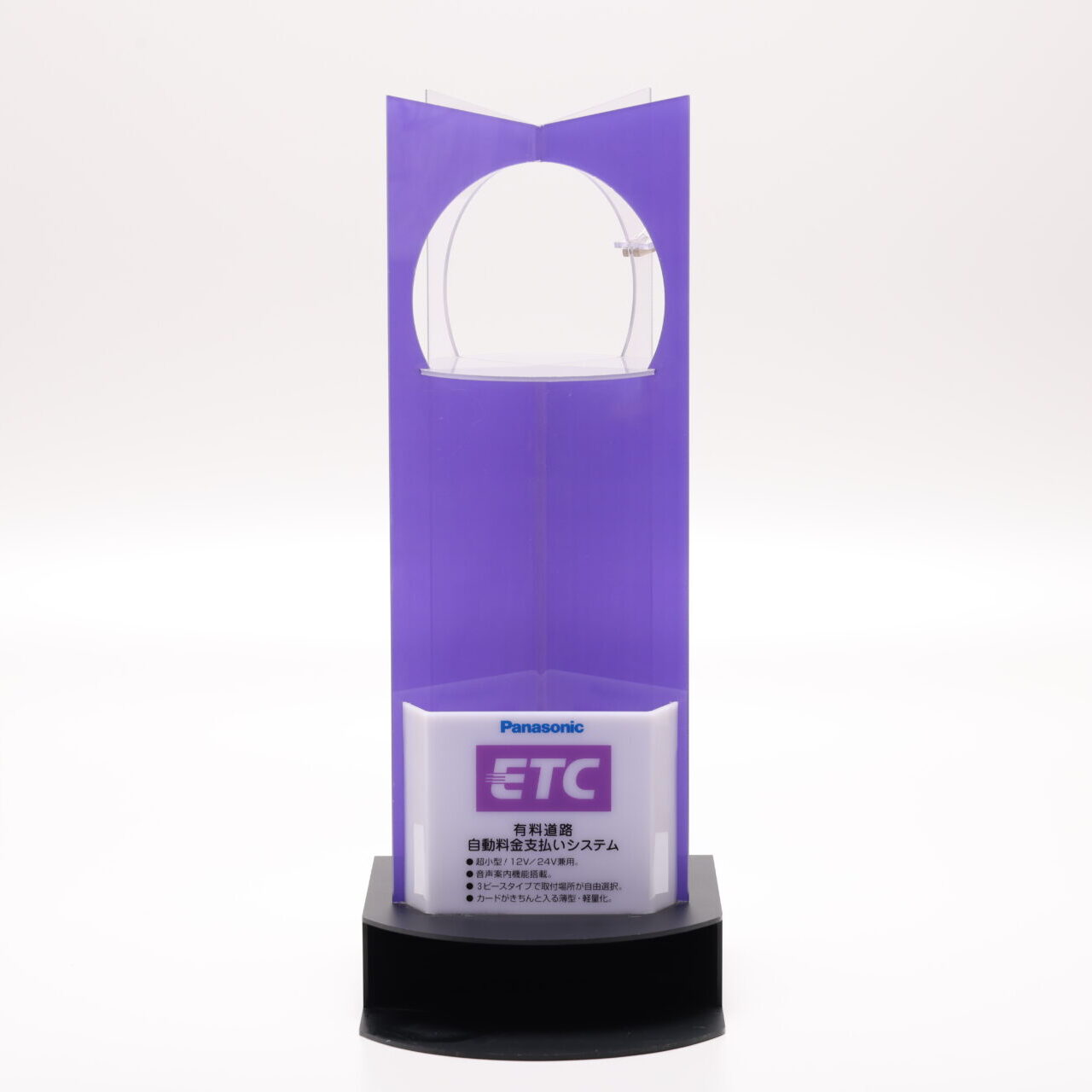

Displays
Partition boards

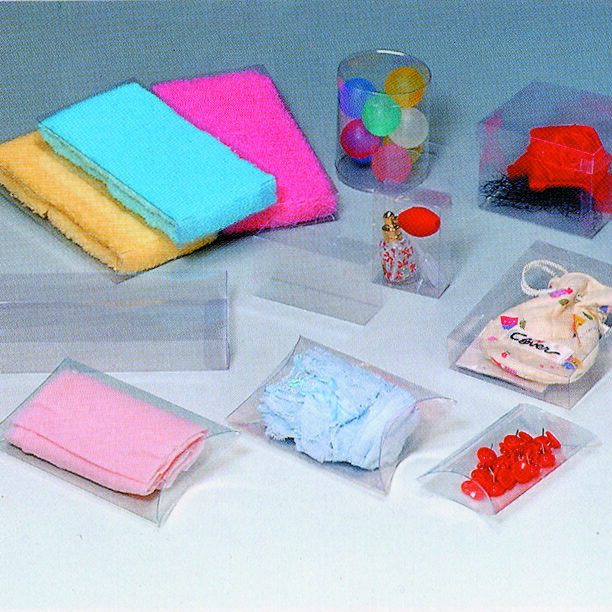

Packages

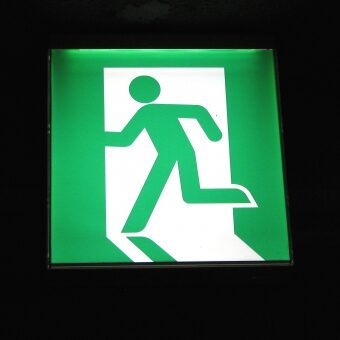

Signboards
SPECIFICATIONS
ESBILON SHEET/ESBILON STAT
|
Product name
|
Item number
|
Color | Size (mm) | Thickness (mm) |
Specific gravity
|
N.B. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W × L | 0.15 | 0.2 | 0.3 | 0.4 | 0.42 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | |||||
|
ESBILON SHEET
|
FG-100 | Transparent | 670×1460 | ○ | 1.4 |
Interleaving paper type
|
|||||||||
| A-100 | Transparent | 670×1460 | ○ | ○ | ○ | ○ | 1.4 |
Interleaving paper type
|
|||||||
| B-100 | Transparent | 670×1460 | ○ | ○ | ○ | ○ | 1.4 |
Interleaving paper type
|
|||||||
| A-310 | White | 670×1460 | ○ | ○ | ○ | ○ | 1.45 |
Interleaving paper type
|
|||||||
| A-360 | Grey | 670×1460 | ○ | ○ | 1.45 |
Interleaving paper type
|
|||||||||
| A-370 | Black | 670×1460 | ○ | ○ | 1.45 |
Interleaving paper type
|
|||||||||
| A-Colors | 6 colors | 670×1220 | ○ | 1.45 |
Interleaving paper type
|
||||||||||
| AH-Colors |
Red transparent
Green transparent
|
670×1460 | ○ | 1.4 |
Interleaving paper type
|
||||||||||
|
AM-1000-H
|
Transparent | 915×1830 | ○ | ○ | 1.4 |
Double-sided paper masking
|
|||||||||
| 1000×2000 | ○ | ○ |
Double-sided paper masking
|
||||||||||||
| AM-1000PP | Transparent | 910×1820 | ※ |
Double-sided polyethylene masking
|
|||||||||||
| AM-3100-H | White | 910×1820 | ○ | 1.45 |
Double-sided paper masking
|
||||||||||
| AM-3700 | Black | 910×1820 | ※ |
Double-sided paper masking
|
|||||||||||
| AM-1900 |
Smoky brown
|
910×1820 | ※ |
Double-sided paper masking
|
|||||||||||
|
ESBILON STAT
|
AS-100 | Transparent | 670×1460 | ○ | ○ | ○ | ○ | 1.4 |
Interleaving paper type
|
||||||
ESBILON PLATE
| Product name |
Item number
|
Color | Size (mm) | Thickness (mm) |
Specific gravity
|
N.B. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W × L | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | |||||
| ESBILON PLATE |
I-500-TR
|
Transparent | 910×1820 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | 1.4 |
Double-sided paper masking
|
| 1000×2000 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | 1.4 |
Double-sided paper masking
|
|||
| I-500-TR-SS | Transparent | 1000×2000 | ○ | ○ | ○ | 1.4 |
Double-sided polyethylene masking
|
|||||
|
I-311-H
|
Transparent | 910×1820 | ○ | ○ | ○ | ○ | ○ | 1.45 |
Double-sided paper masking
|
|||
| 1000×2000 | ○ | ○ | ○ | ○ | ○ | 1.45 |
Double-sided paper masking
|
|||||
| I-3603-H | Grey | 1000×2000 | ○ | ○ | ○ | ○ | ○ | 1.45 |
Double-sided paper masking
|
|||
|
I-104-H
|
Smoky brown
|
910×1820 | ○ | ○ | 1.4 |
Double-sided paper masking
|
||||||
| 1000×2000 | ○ | ○ | 1.4 |
Double-sided paper masking
|
||||||||
| I-1701-H | Smoky grey | 1000×2000 | ○ | ○ | 1.4 |
Double-sided paper masking
|
||||||
